Replacing Spark Plugs on a Modern Engine

Replacing spark plugs can look like a simple remove-and-refit job. On a modern engine, a damaged cylinder-head thread, an incorrectly specified plug, or a new misfire can turn it into a much larger repair. The risk rises when plugs sit deep in wells or behind components that must be removed first.

Before buying parts or lifting a tool, confirm the procedure for your exact engine and check how you will reach every plug. If access requires unfamiliar disassembly, or the service information calls for a procedure you cannot carry out accurately, a workshop may be the more sensible choice.

Know when replacement is due—and whether you can reach the plugs

Use the engine-specific maintenance schedule to decide when replacement is due. Smooth running does not establish that the plugs have useful life left: wear can develop gradually, and intermittent misfires may be easy to miss. Following the schedule also avoids leaving worn plugs to place unnecessary demands on the ignition system.

As examples, conventional nickel plugs may have replacement intervals of 20,000–30,000 km, while platinum or iridium plugs may be scheduled for 60,000–100,000 km. These are illustrative ranges, not rules for your vehicle. The specified interval can depend on the engine and the plug fitted at the factory.

Check access before treating the job as routine. Many engines use individual ignition coils over deep plug wells, with covers above them; others require intake components to be removed. A plug visible from above is a different job from one hidden behind a manifold or a crowded rear cylinder bank.

Read the access instructions through to reassembly, including any seals, fasteners, or components they address. If you cannot reach every plug without awkward tool angles or substantial disassembly, factor that risk into the DIY decision. Damaging a connector or leaving an intake joint improperly refitted can outweigh the saving from doing the plug change yourself.

Confirm the exact plug before opening the engine

Identify the engine accurately, then check its service information for the specified plug design, heat range, and gap. A catalogue listing is a useful cross-check, but a plausible fit by thread size alone is insufficient. Reach, seat type, and other design details must match the applicable specification.

Some manufacturers specify particular part numbers; a compatible aftermarket equivalent may be acceptable where it meets the applicable specification. Compare the proposed plug with the engine documentation rather than assuming an aftermarket cross-reference settles every detail. If a workshop is supplying the parts, confirm the specification with it before installation.

Iridium is not an automatic upgrade. A plug with the wrong heat range or construction may run poorly even if it screws into the head. Turbocharged and direct-injection applications make guessing especially unwise: some high-boost applications specify a 0.6–0.7 mm gap, but that is not a universal turbo-engine setting. Follow the gap specified for your engine and plug.

Inspect the packaging and the plugs before fitting them. Check part numbers across the boxes, look for shipping damage, and use a seller whose supply you trust. An inexpensive plug is not necessarily counterfeit, but an uncertain source gives you one more variable to investigate if the engine misfires afterward.

Prepare the engine and protect the plug wells

Read the engine-specific service procedure before starting, including its instruction on engine temperature. There is no reliable blanket rule to remove plugs hot or merely warm. Have the correct spark-plug socket, extensions, and torque tool ready so you do not have to improvise once the engine is open.

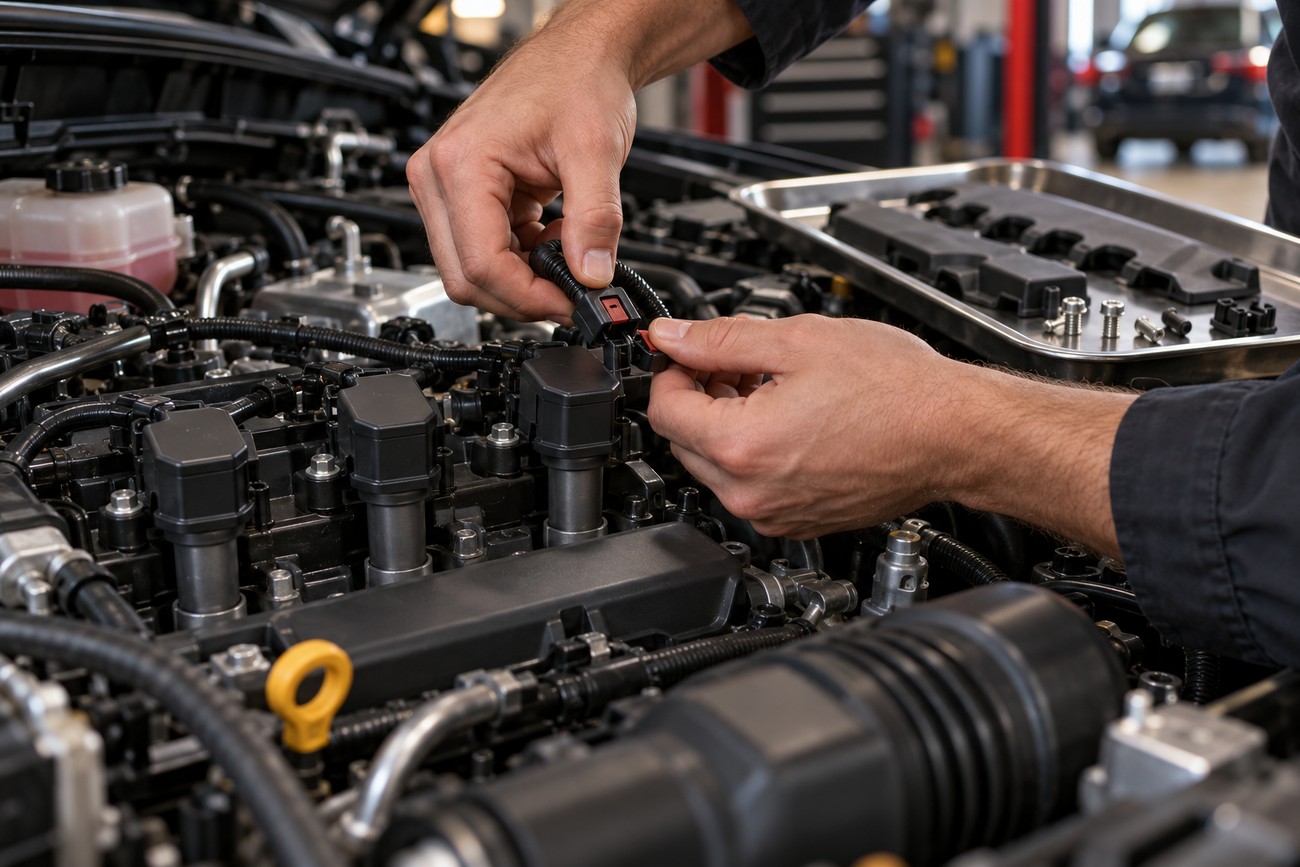

Remove covers and other obstructions as instructed, keeping fasteners and parts organized. Release ignition-coil connectors by their locking features rather than pulling on the wires; aged plastic can break. Keep coils and related components identified so each returns to its intended position.

Before loosening a plug, clear loose dirt from its well with a suitable vacuum or controlled compressed air. Debris that sits beside a plug can fall into the cylinder as soon as the plug comes out. Inspect deep wells carefully, particularly if they contain corrosion, oil, or grit that could interfere with the socket.

Remove old plugs without sacrificing the threads

Seat the socket fully on the plug and keep the tool aligned with the well. Loosen each plug carefully, then withdraw it without dragging dirt from the well into the open hole. Keep the removed plugs in cylinder order if you want to compare their condition later.

Unusual resistance is a reason to stop, especially in an aluminum cylinder head. Applying more leverage can damage the threads or break the plug, creating a repair far more involved than replacing a plug set. Resistance also makes it harder to tell whether the plug is loosening cleanly.

A plug that first resists removal deserves a clean, inspected well and a check of the engine-specific removal procedure. A forum trick is a poor substitute for knowing what is binding.

If a plug appears seized, follow the applicable service procedure or seek professional help. Do not treat penetrating fluid, a brief tightening movement, or a change in engine temperature as a universal fix. The safe response depends on the engine, the plug, and where the resistance occurs.

Install the new plugs with the specified seating and torque

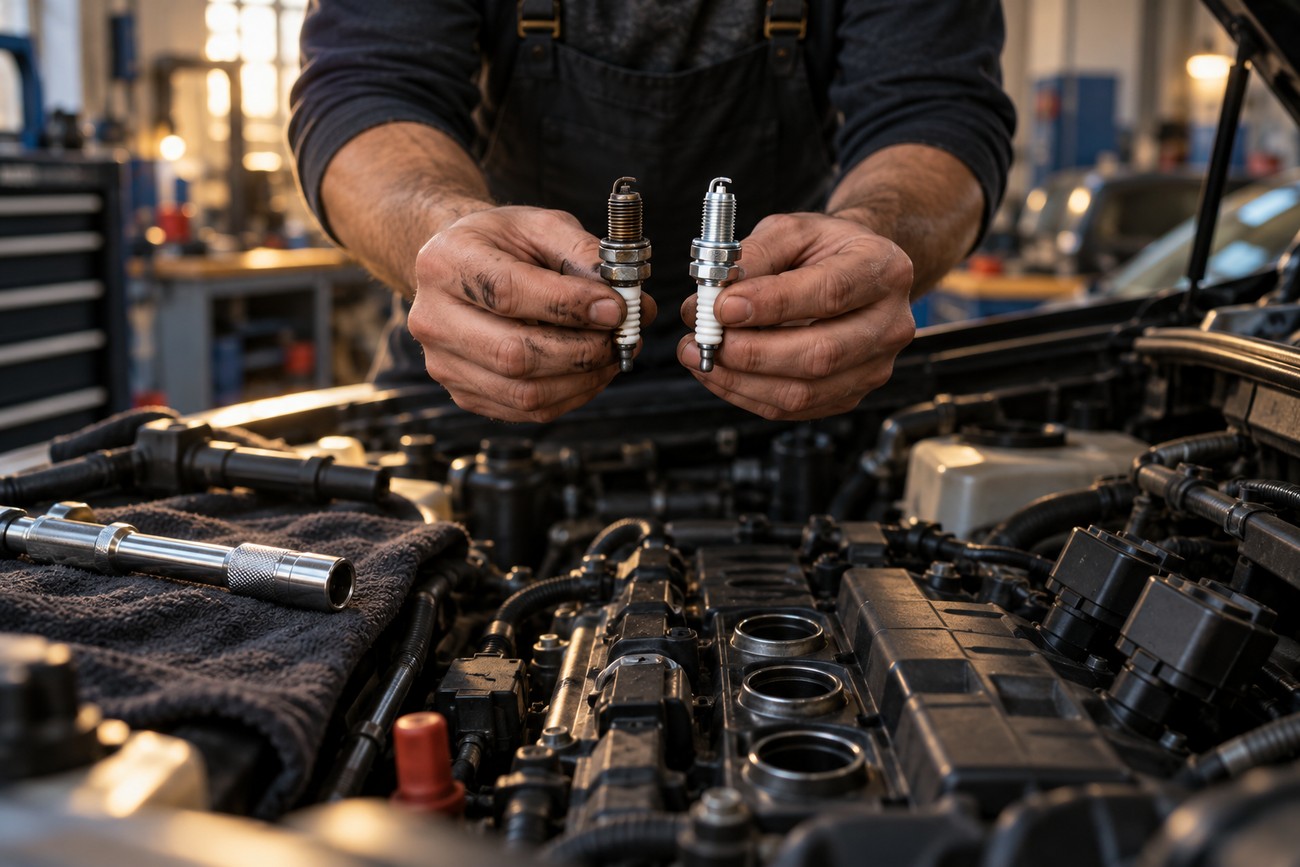

Compare each new plug with the specified part before installation, and check it for damaged threads, insulator, or electrodes. Verify the gap as directed by the plug and engine instructions; avoid bending a fine-wire electrode with a tool intended for a different plug design. Keep the open plug holes protected from dirt while you work.

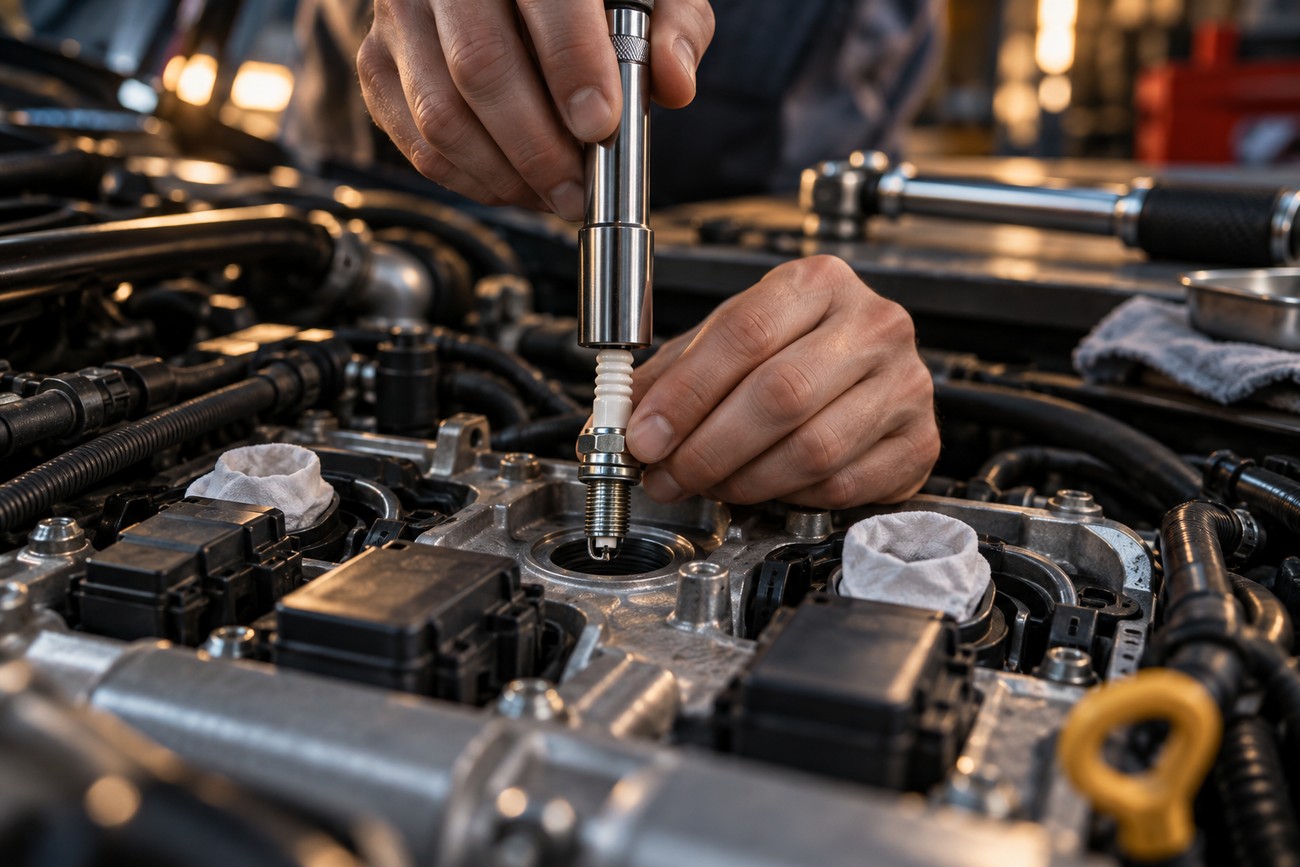

Lower each plug into its well with the correct socket and start the threads by hand. It should turn smoothly before any tightening force is applied. If it binds immediately, back it out and investigate rather than using a ratchet to drive it into an aluminum head.

Follow the engine-specific torque or seating-angle instruction. Some procedures use a torque figure; others specify an angle after the plug seats. There is no universal tightening value, and the instruction may depend on whether the plug has a gasket or another seat design.

Do not add anti-seize or other thread lubricant unless the plug or engine instructions explicitly call for it. Lubrication changes friction relative to a dry-thread torque specification, so the same indicated torque can produce a different clamping force. It can increase the risk of over-tightening and damage.

A torque wrench is the safer default for a DIY installation. Experienced mechanics may sometimes tighten by feel, but that judgment depends on familiarity with the plug and cylinder head and carries a thread-damage risk. Correct tightening protects the seat and threads without relying on extra force to keep the plug secure.

Reassemble and check the result before driving normally

Refit each ignition coil and seat its electrical connector fully. Reinstall covers and any other parts removed for access, following the service procedure for their fasteners and connections. Before starting, check that tools and loose parts are clear of the engine bay.

Start the engine and listen for rough running, then check for a warning light. A smooth idle is a useful first check, although it cannot prove that every installation detail is correct under load. Address anything obviously loose or disconnected before driving normally.

If a new misfire appears, check plug fitment, connector seating, and components disturbed during the job first. A post-replacement misfire does not, by itself, prove that a coil has failed. If the engine misfires severely or the fault persists after basic checks, stop driving and arrange diagnosis rather than continuing to run it.

When a spark-plug job should stop being DIY

Unexpected disassembly is a reasonable stopping point. If reaching the remaining plugs means removing intake parts or working where you cannot keep the socket aligned, reassess the job before dismantling further. The same applies when the procedure requires tools or checks you cannot perform.

A plug that will not loosen safely, or threads that appear damaged, calls for the engine-specific repair procedure or professional help. Forcing a stuck plug and repeatedly tightening a replacement into suspect aluminum threads can turn a manageable problem into cylinder-head work.

Do not install an unverified plug simply to finish the job. Its design, heat range, and gap must match the engine-specific specification; iridium is not an automatic upgrade. If those details cannot be confirmed, obtain the correct part before proceeding.

Persistent misfiring after you have checked the plug specification and disturbed connections also warrants diagnosis. It may involve a plug, a connector, a coil, or another fault, and replacing parts on suspicion can obscure the cause. A workshop can test the fault rather than assuming the newest component is responsible.

Frequently asked questions

Other ignition parts do not need automatic replacement with every plug set. Use the questions below to distinguish a condition that needs attention from a component that can remain in service.

What else should you change when replacing spark plugs?

Inspect the ignition-coil boots and seals, but replace them according to their condition or the engine-specific service instructions. A boot with cracks, signs of electrical tracking, or contamination that cannot be properly resolved needs attention; an intact, clean boot can usually remain in service. If a well contains oil or water, address the source as well as any affected ignition component.

Why is there oil in a spark plug well?

Oil around the outside of a plug, inside its well, usually points to a leak into the well rather than a problem identified by the electrode condition alone. A valve-cover or plug-well seal may need inspection, depending on the engine. Clean the well before removing the plug and repair the leak; installing a new plug without addressing the oil can leave the coil boot contaminated.

What are four signs a spark plug should be replaced?

Four reasons to inspect the plugs and check the replacement schedule are rough running or misfires, difficult starting, hesitation under load, and visibly worn or damaged electrodes on a removed plug. None identifies a plug fault on its own: coils, fuel delivery, and other issues can cause similar symptoms. Replace plugs at the engine-specific interval even if those signs have not appeared.

What to do immediately after changing spark plugs?

Confirm that the coils and connectors are seated, all removed parts are refitted, and no tools remain in the engine bay. Start the engine and check its idle and warning lights before normal driving. If it runs roughly, stop and recheck the plug specification and connections; persistent or severe misfiring needs diagnosis.
